The configuration of the monitoring is defined in the profiles

To monitor a system, simply assign profiles to its connectors

Default profiles are provided to facilitate the setup of the monitoring, you can visualize them via the menu PROFILES → Select default profiles

These profiles contains monitors with a default configuration

To visualize the content of a profile, simply select one in the PROFILES section, this will display its current monitors (see image below - step 1 -)

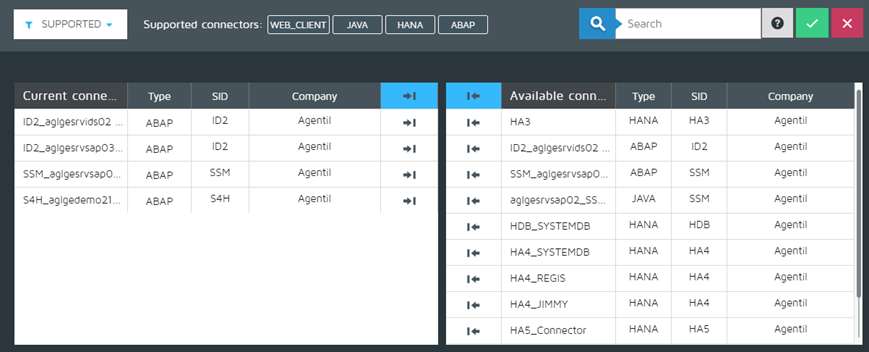

Use the assign (see image below - step 2 -) button to associate a profile to one or several connectors. This will open a screen (see image below - step 3 -) where you will be able to move connectors from right to left and vice versa. The ones on the left will use the profile

You can also create empty profiles and defined exactly which monitors you want to activate

From a profile, you can press the EDIT button to open the list of available monitors (see image below - step 4 -)

On the right side are displayed the available monitors and on the left, the ones already used in the profile.

Simply move the monitors left and right to add and remove monitors.

Warning: If you remove a monitor from a profile, you will loose its customization, and it won’t be used against the assigned systems.
