Maintenances

Purpose

Maintenances allow you to define time periods when systems will be unavailable for monitoring. During these maintenance windows, the monitoring connectors for affected systems are automatically placed in maintenance mode, preventing false alerts.

You can create three types of maintenance periods:

  • 'Ad hoc' - Manually started and stopped maintenance windows with no schedule
  • 'Scheduled' - One-time maintenance at a specific date and time
  • 'Recurrent' - Repeating maintenance windows (daily, weekly, or monthly patterns)

Maintenances UI

Main Page

The maintenance settings page displays a table of all defined maintenance periods within the tenant.

The page includes:

  • A 'Create' button to define new maintenance periods
  • Bulk action buttons that appear when items are selected:
    • 'Activate selection' - Enable selected maintenance periods
    • 'Deactivate selection' - Disable selected maintenance periods
    • 'Delete selection' - Remove selected maintenance periods
    • 'Start selection' - Manually start selected maintenance periods
    • 'Stop selection' - Manually stop selected maintenance periods
  • A filter field to search maintenance periods by name

Maintenance Table

The table displays the following information:

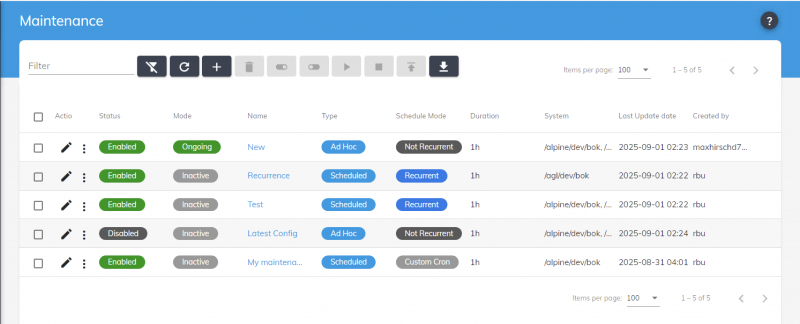

 Maintenance Settings Page

Column Description
Checkbox Select maintenance periods for bulk operations
Status Toggle switch showing if the maintenance is 'Active' or 'Not active'
Current Mode Badge showing 'ONGOING' (green) or 'INACTIVE' (gray)
Name The maintenance period name
Type 'AD_HOC', 'SCHEDULED', or 'RECURRENT'
Schedule Display of the schedule (e.g., “Every Sunday at 12:00” or “2025-12-24 10:00”)
Duration Time in minutes (or “Manual stop” if duration is 0)
Target Systems Number of affected systems (hover shows list)
Last Updated Timestamp and user who last modified
Actions Three-dot menu with options: Edit, Delete, Start (if inactive), Stop (if ongoing)
Create/Edit Maintenance

Basic Information

 Basic Information Form

Field Description
Name Required text field for the maintenance identifier
Description Optional text area for detailed maintenance information
Status Toggle to enable or disable the maintenance period

Maintenance Type

Radio button selection:

Ad Hoc

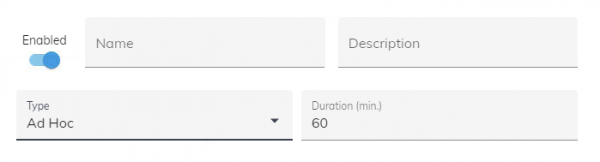

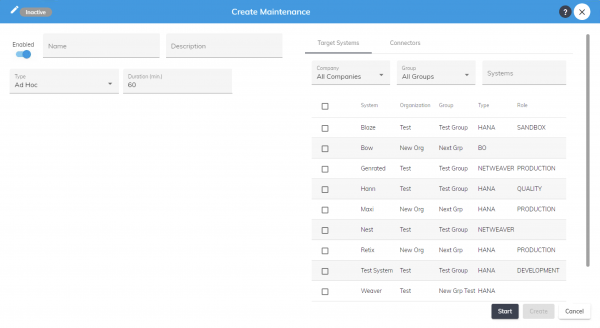

Ad Hoc Configuration

  • No schedule configuration
  • Maintenance must be manually started and stopped
  • Shows message: “This maintenance will only run when manually triggered”

Scheduled

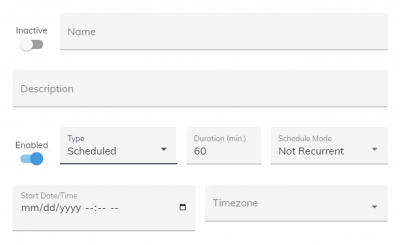

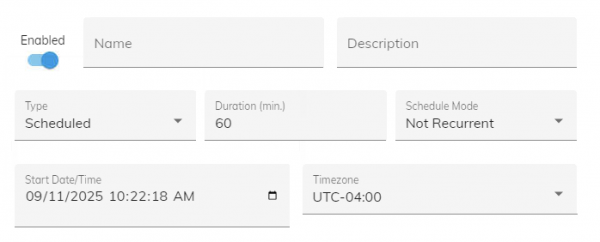

Scheduled Configuration

  • One-time maintenance window
  • Shows date/time picker for 'Start Date and Time'
  • Example: “December 24, 2025 at 10:00 AM”

Recurrent

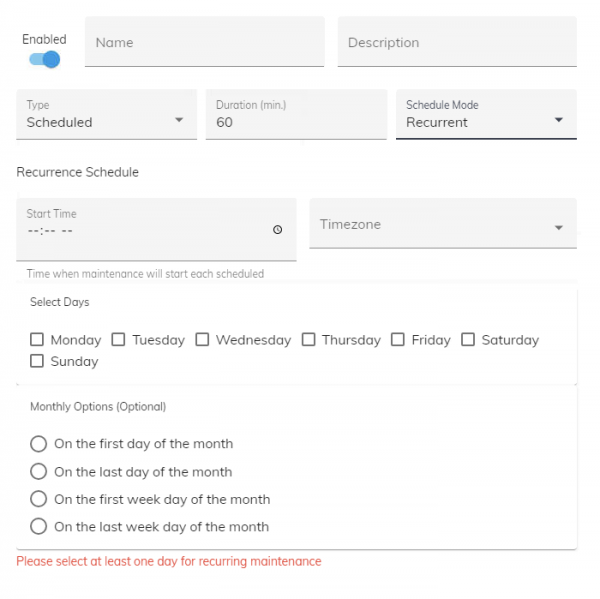

Recurrent Configuration

  • Repeating maintenance windows
  • Opens schedule configuration options (see Schedule Configuration below)

Duration

Field Description
Duration (minutes) Number input field. Enter 0 for manual stop required, otherwise maintenance auto-stops after specified minutes
Duration Display Shows calculated time (e.g., “2 hours” for 120 minutes)
Schedule Configuration

For Recurrent Maintenance

Schedule Type Selection

Dropdown menu with options:

Weekly Schedule

  • 'Start Time' - Time picker (HH:MM format)
  • 'Days of Week' - Checkboxes for:
    • ☐ Monday
    • ☐ Tuesday
    • ☐ Wednesday
    • ☐ Thursday
    • ☐ Friday
    • ☐ Saturday
    • ☐ Sunday
  • Example display: “Every Monday, Wednesday, Friday at 14:00”

Monthly Schedule

  • 'Start Time' - Time picker (HH:MM format)
  • 'Day Selection' - Radio buttons:
    • ○ First day of month
    • ○ Last day of month
    • ○ First weekday of month
    • ○ Last weekday of month
  • Example display: “First weekday of each month at 09:00”

Custom Cron

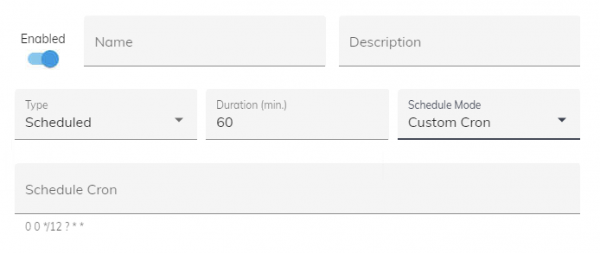

Custom Cron Configuration

  • 'Cron Expression' - Text field for Quartz cron string
  • 'Validation' - Red error message appears for invalid expressions
  • 'Help Link' - “View cron syntax documentation”
  • Example:
    0 0 12 ? * SUN *

    (Every Sunday at noon)

Schedule Testing

Schedule Testing Panel

Test panel (collapsible section):

  • 'Test Date/Time' - DateTime picker to select test moment
  • 'Test Schedule' button - Validates if maintenance would be active
  • 'Result Display':
    • ✓ Green message: “Maintenance would be ACTIVE at selected time”
    • ✗ Red message: “Maintenance would be INACTIVE at selected time”
    • ⚠ Error message for invalid cron expressions
Target Systems Selection

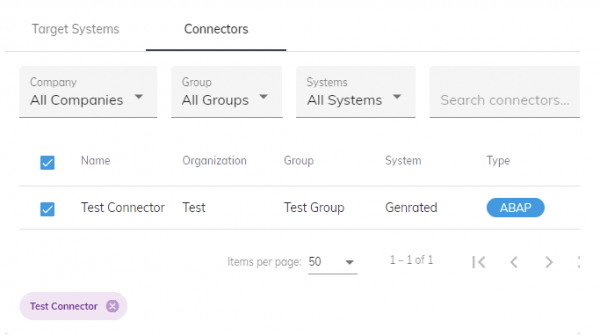

Systems Selector

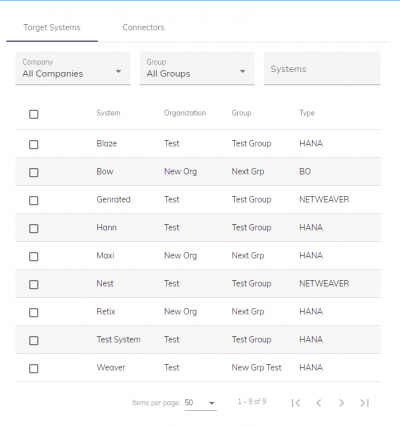

Systems Selector Interface

Two-panel selector interface:

Systems (Left Tab)

  • Search field to filter systems
  • List showing:
    • System name
    • System organization
    • System group
    • System type
  • Select all checkbox
  • Shows count: “Showing X of Y systems”

Connectors (Right Tab)

  • Search field to filter connectors
  • List showing:
    • Connector name
    • Connector status
    • Connector organization
    • Connector group
    • Connector system
    • Connector type
  • Select all checkbox
  • Shows count: “Showing X of Y systems”

Transfer Controls

  • 'Add >' button - Move selected systems to chosen
  • '< Remove' button - Move systems back to available
  • 'Add All »' button - Select all visible systems

Individual Actions

Actions available from the three-dot menu:

Enable/Disable

  • Changes the maintenance status
  • Disabled maintenances won't trigger automatically
  • Shows confirmation: “Maintenance [name] has been enabled/disabled”

Start Maintenance

  • Only available when maintenance is INACTIVE
  • Immediately activates maintenance mode for all target systems
  • Shows confirmation dialog:
    • Title: “Confirmation”
    • Message: “Are you sure?”
    • Buttons: [Ok] [Cancel]

Stop Maintenance

  • Only available when maintenance is ONGOING
  • Immediately deactivates maintenance mode for all target systems
  • Shows confirmation dialog:
    • Title: “Confirmation”
    • Message: “Are you sure?”
    • Buttons: [Ok] [Cancel]

Edit

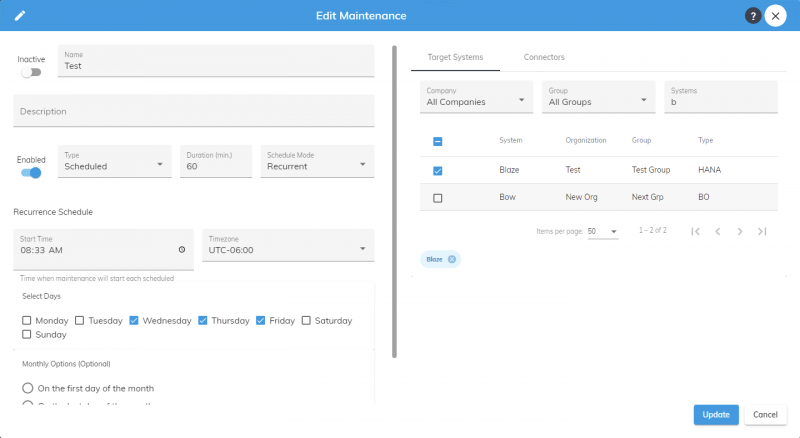

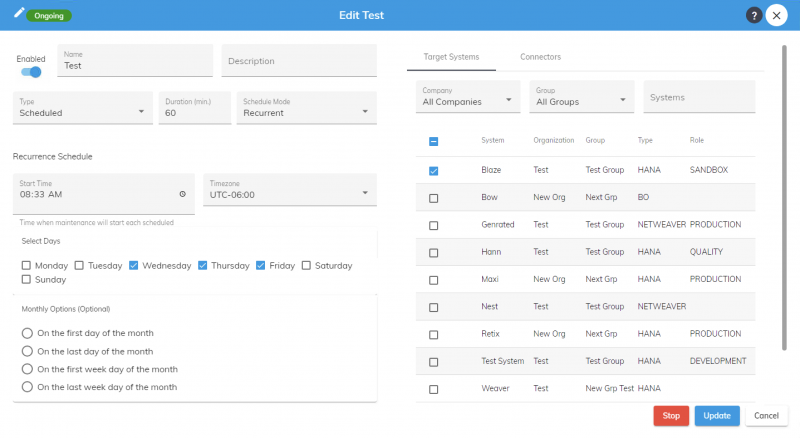

Edit Maintenance Form

  • Opens the maintenance configuration form
  • All fields are pre-populated with current values
  • Save button updates the maintenance

Delete

  • Shows confirmation dialog:
    • Title: “Confirmation”
    • Message: “Are you sure?”
    • Buttons: [Ok] [Cancel]

Bulk Actions

When multiple maintenances are selected:

Bulk Enable/Disable

  • Enables or disables all selected maintenance periods

Bulk Start/Stop

  • Starts or stops all selected maintenance periods

Bulk Delete

  • Shows confirmation dialog:
    • Title: “Confirmation”
    • Message: “Are you sure?”
    • Buttons: [Ok] [Cancel]
Status Indicators

Visual States

Status Appearance Description
Enabled + Inactive Blue toggle ON, Gray “INACTIVE” badge Maintenance is enabled but not currently running
Enabled + Ongoing Blue toggle ON, Green “ONGOING” badge Maintenance is enabled and currently active
Disabled + Inactive Gray toggle OFF, Gray “INACTIVE” badge Maintenance is disabled and not running

Form Validation

Field Validation Error Message
Name Required, Unique “Maintenance name is required” / “Name already exists”
Start Date Future date for scheduled “Start date must be in the future”
Duration Non-negative number “”
Cron Expression Valid Quartz syntax “Invalid cron expression: [details]”

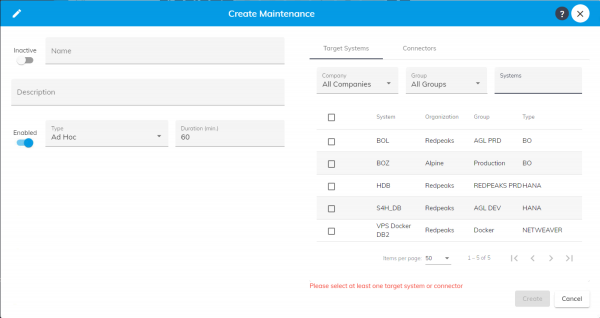

Target Systems or Target connectors At least one selected “Select at least one target system or connector”
Schedule Days At least one day for weekly “Select at least one day of the week”
